PROCESS TUBE ADAPTOR for service connection during repairs
CODE: 241-F03
Click to enlarge

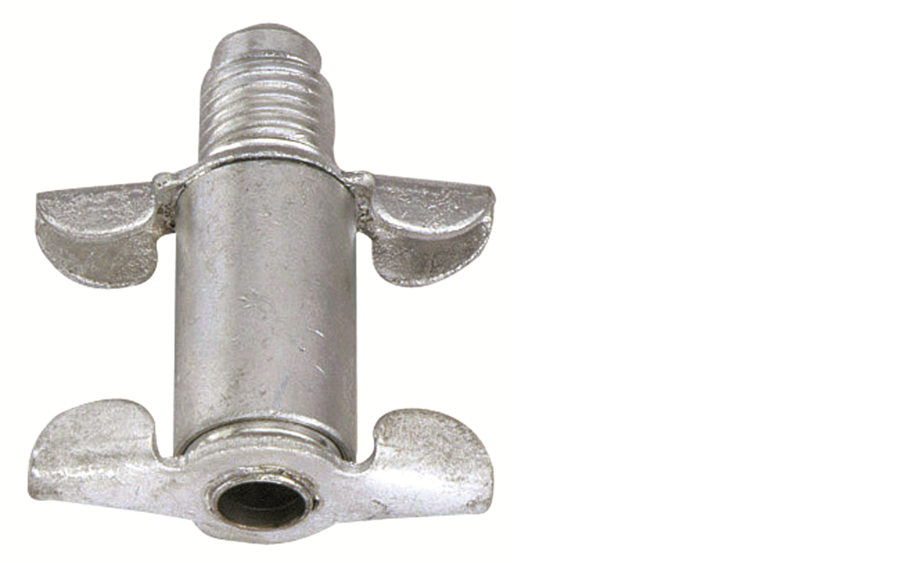

241-F-03 PROCESS TUBE ADAPTER FOR CHARGING & TESTING
Offers a convenient method of making a service connection to a hermetic unit. Also ideal for providing a connection in testing coils and tubing installations. Handles pressure to 100 PSI. To connect to a hermetic system, pinch-off tube is cut off and adapter is slipped over cut end of tube and tightened. Synthetic rubber seal of adapter grips and seals outside of tube. This gives a 1/4” SAE male flare connection to the system for evacuating, charging or testing. After system is recharged, tube is pinched off next to adapter. Adapter is then removed and tube is cut off and sealed with solder. Adapter can be reused repeatedly.
| PART NO. | TUBE O.D. (in.) | SAE FLARE END (in.) |
| 241-F-03 | 3/16" | 1/4" |
(Process-Tube-Adaptor)
| SKU | Process-Tube-Adaptor |
| Brand | Imperial |
