IR-94 Convertable Retaining Ring Circlip Pliers

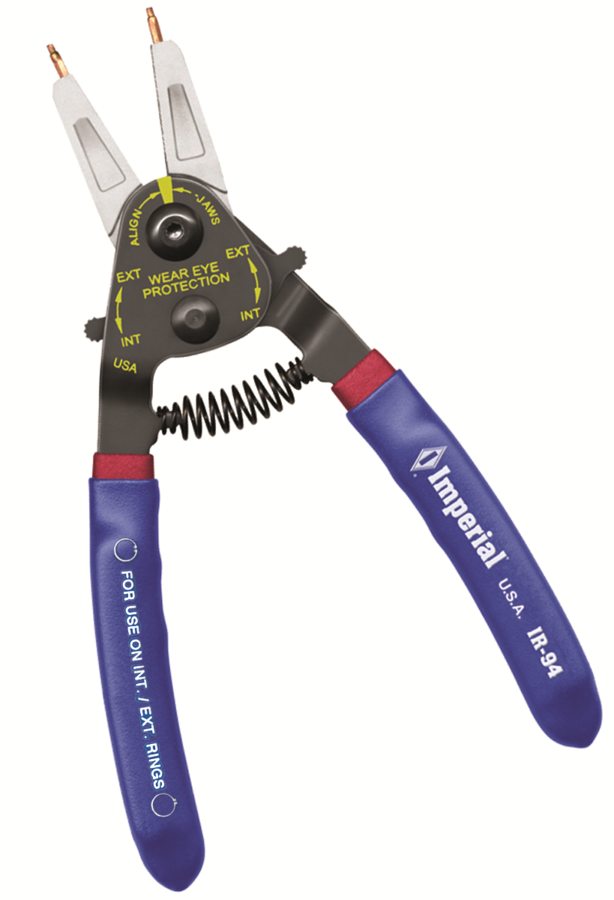

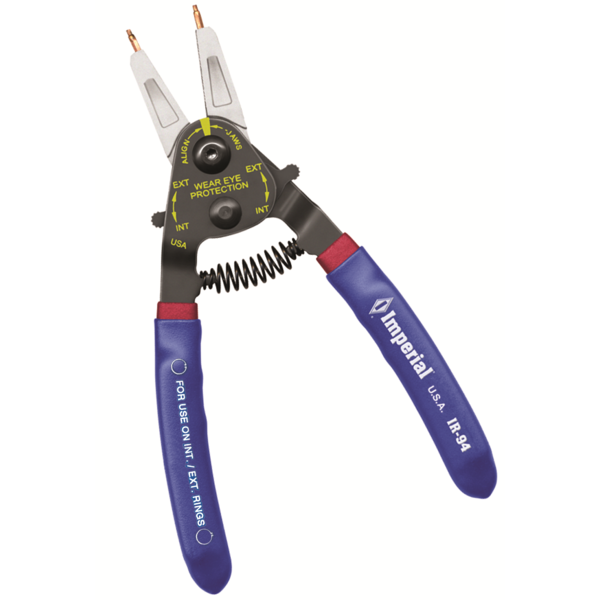

IR-94 Universal Convertible Retaining Ring Circlip Pliers - up to 1" diameter

Click to enlarge

Have you logged In

Registered Account holders click here to log in

IR-94 Inner \ Outer Retaining Ring Pliers for ring sizes 1/8" to 1"

EASY TO CONVERT FROM INTERNAL TO EXTERNAL RINGS – SIMPLY MOVE LEVERS TO SWITCH. NO PINS TO PUSH!

• Patented design allows for quick changeover.
• Replaceable tips held firmly in place by hex-shaped locking guides.
• Tough steel construction for durability and strength.
• Ergonomic anti-slip sealed air-pocket grips for comfort.
• Spring loaded to speed the work.• Black oxide finish resists rust and corrosion.

Includes five pairs of color-coded precision-ground tips and hex key wrench in convenient storage pouch:

(2) 0.024 in. Red Tips
(2) 0.038 in. Yellow Tips
(2) 0.038 in. Yellow 90° Tips
(2) 0.047 in. Green Tips
(2) 0.047 in. Green 90° Tips

CODE: IR-94TP for REPLACEMENT TIP KIT FOR IR-94 PLIERS
CODE: IR-92TP for REPLACEMENT TIP KIT FOR IR-92 PLIERS

Simple to Use
1. Determine the largest size of tip that will fit the retaining ring holes. Insert tips into pliers and
tighten set screws with included 3/16 in. hex key wrench.
2. Convert pliers to internal or external position by gently squeezing grips and aligning edge of
jaws with mark on pliers. Push both levers to desired setting. See diagram.
3. Use a punch or similar tool to break any bond created from rust or dirt that has accumulated in the
retaining ring groove.
4. Push the tips of the pliers as far as possible into the retaining ring holes before squeezing the handles.
5. Use only as much pressure as needed to remove or install the retaining ring.

(IR-94)

SKU	IR-94
Brand	Imperial
Shipping Weight	0.3000kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.150m
Shipping Cubic	0.000750000m3
Unit Of Measure	ea
