275-FSC : 45° Flaring, Swaging & Cutting Imperial Tool Kit for 1/8” to 3/4” O.D. tubing & pipe
CODE: 275-FSC - Includes TC-1000 Tube Cutter
Click to enlarge

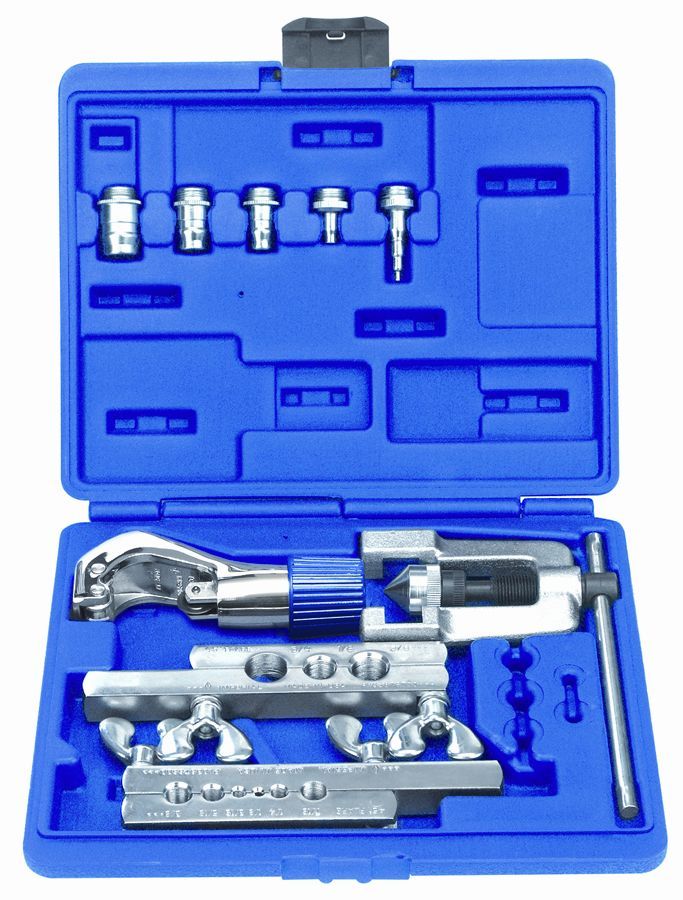

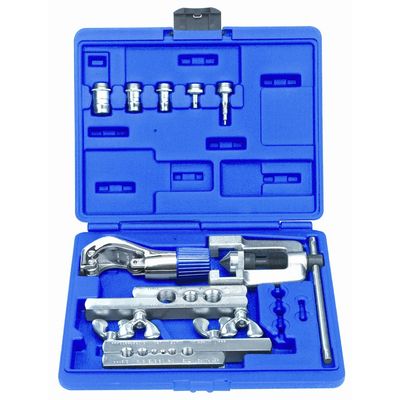

275-FSC 45° Flaring, Cutting & Swaging Kit

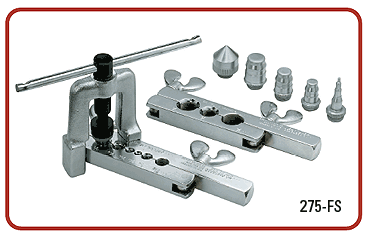

This Imperial Tools Kit contains 275-FS Flaring bars & Yoke, TC-1000 Chrome Tube Cutter to 1-1/8", Swaging adaptors & Case
Suitable for 1/8” to 3/4” (4 mm to 22 mm) O.D. tubing.
275-FSC Flares and Swages up to 3/4" tube
- Converts quickly.
- Screw-type feed.
- Ideal for use in close quarters.
- Two bars included cover 9 sizes.
Swivel-type swaging adapters and flaring cone are hardened steel, chrome finished for easy operation.
Self-centering, slip-on forged steel yoke. Includes tool case. Wt. 3.5 Ibs.
Flares 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8” and 3/4” O.D.
Includes 5 x Swage adapters for 7 tube sizes: 3/16”, 1/4”, 5/16”, 3/8”, 1/2”, 5/8”, 3/4” O.D. Tube.
Replacement parts:
- 278-FS-03X04X06 Swage Adapter 3/16”, 1/4”, 3/8”.
- 278-FS-08 Swage Adapter 1/2”.
- 278-FS-10 Swage Adapter 5/8”.
- 278-FS-12 Swage Adapter 3/4”.
- 278-FS-05 Swage Adapter 5/16”.
- S38600 45 Degree Flaring Cone.

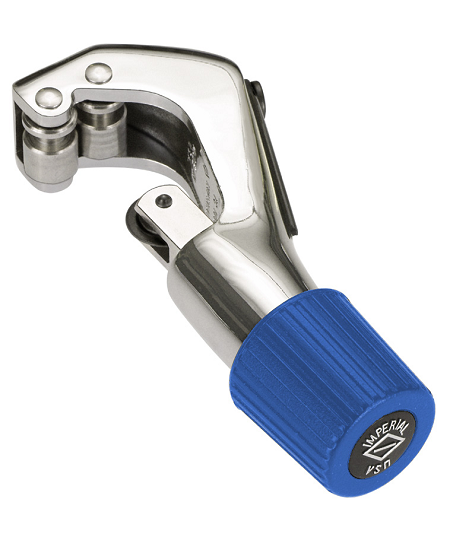

- TC-1000 Tube Cutter [ Chrome ]
(275-FSC)
| SKU | 275-FSC |
| Brand | Imperial |
| Shipping Weight | 3.0000kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.050m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.003000000m3 |
| Unit Of Measure | ea |
| Assembled Length | 0.200m |
| Assembled Height | 0.050m |
| Assembled Width | 0.300m |
